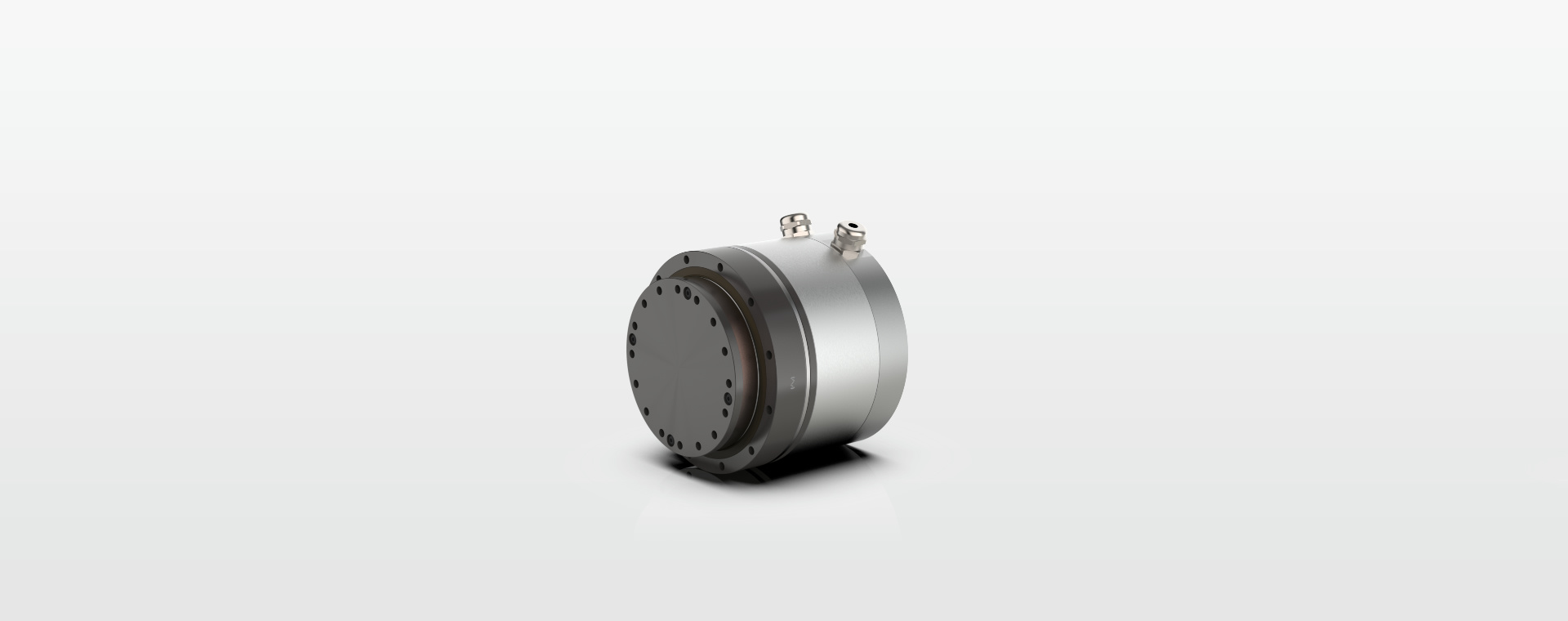

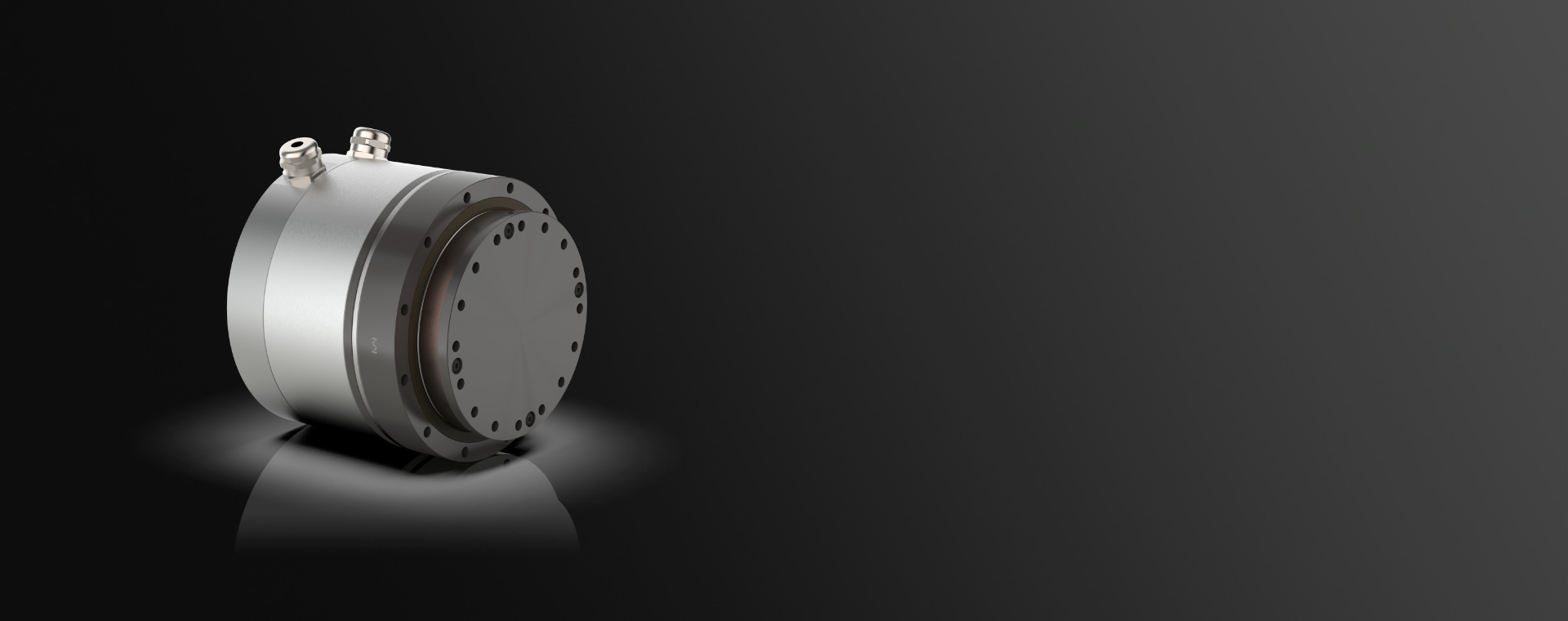

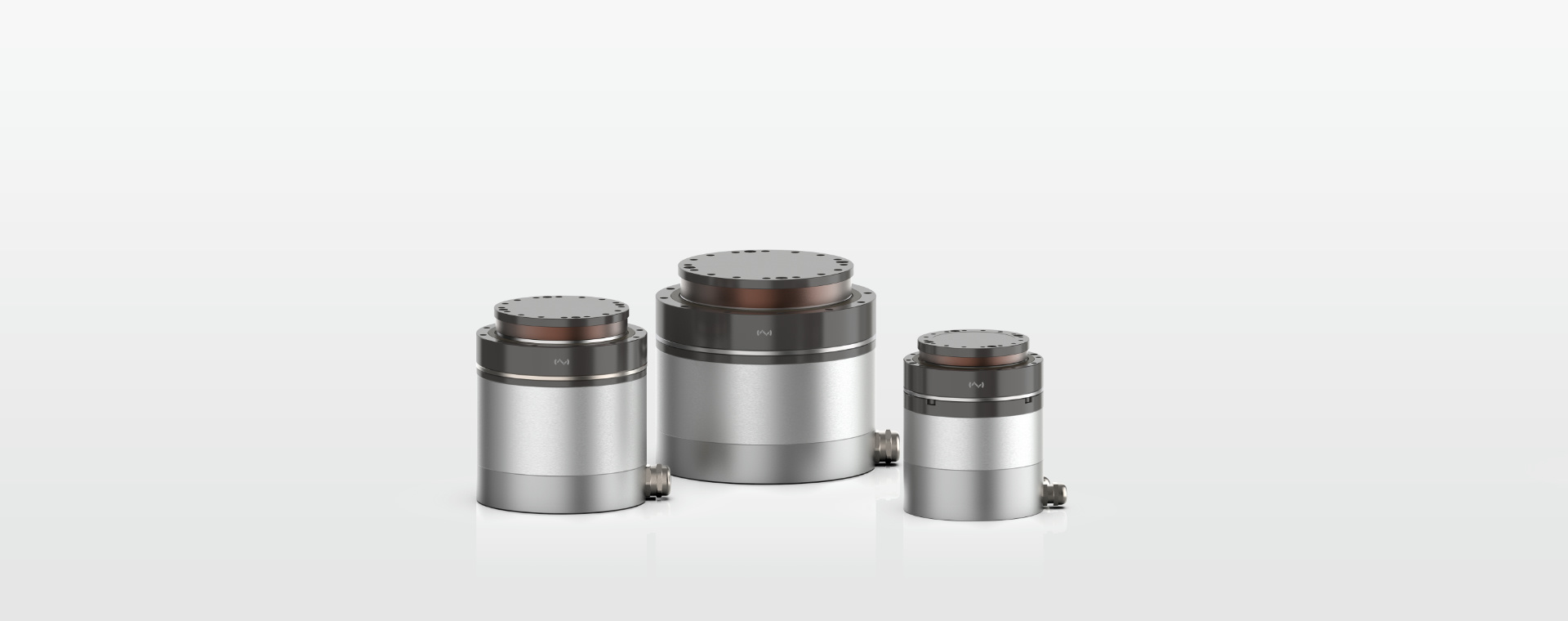

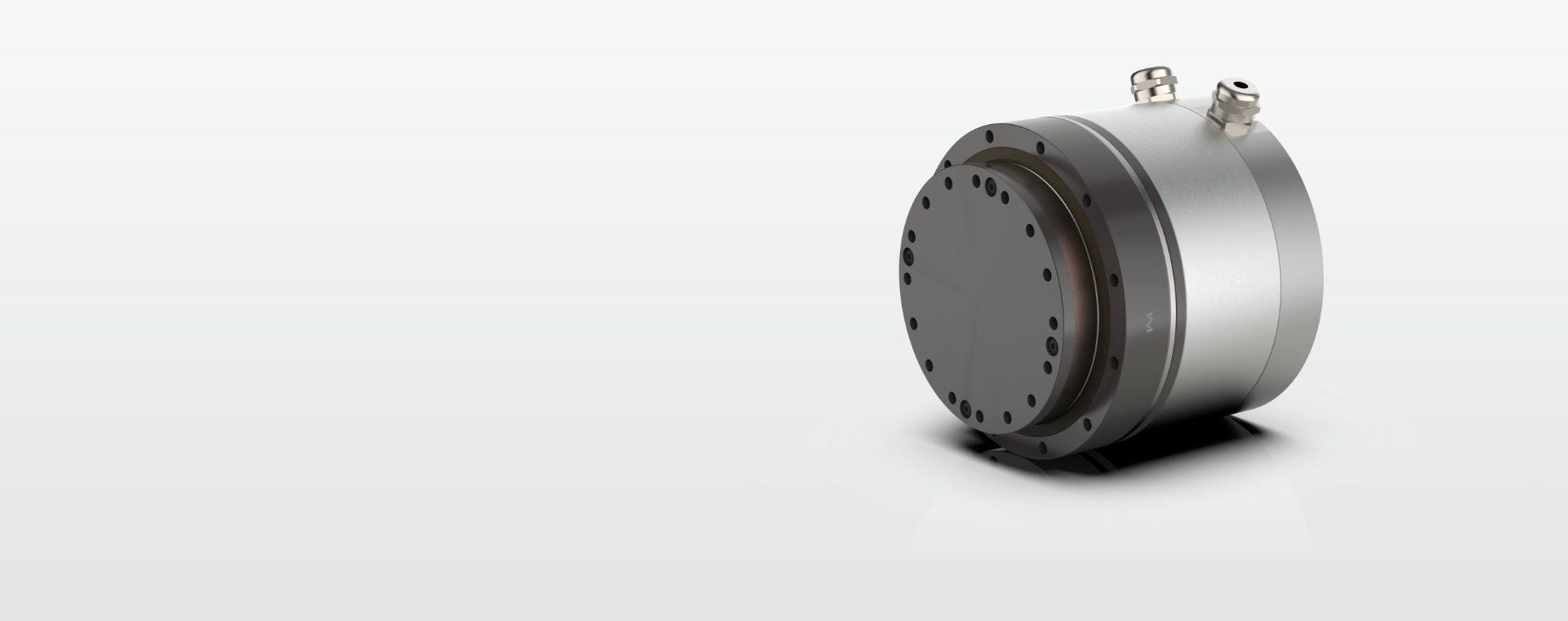

SRA Series
High-Performance Rotary Actuator
SRA Series
High-Performance Rotary Actuator
-
Product Features
- The SRA Series products employ optical encoders, delivering ultra-high precision and a compact structure with minimized axial dimensions, making them ideal for space-constrained installations requiring strict actuator height limitations.
-
Product Advantages
- Compared to Tongchuan's standard actuators, this series achieves approximately 100% improvement in transmission rigidity and 50% enhancement in positioning accuracy. These performance upgrades render it exceptionally suited for demanding applications such as machine tool rotary tables and laser cutting systems.

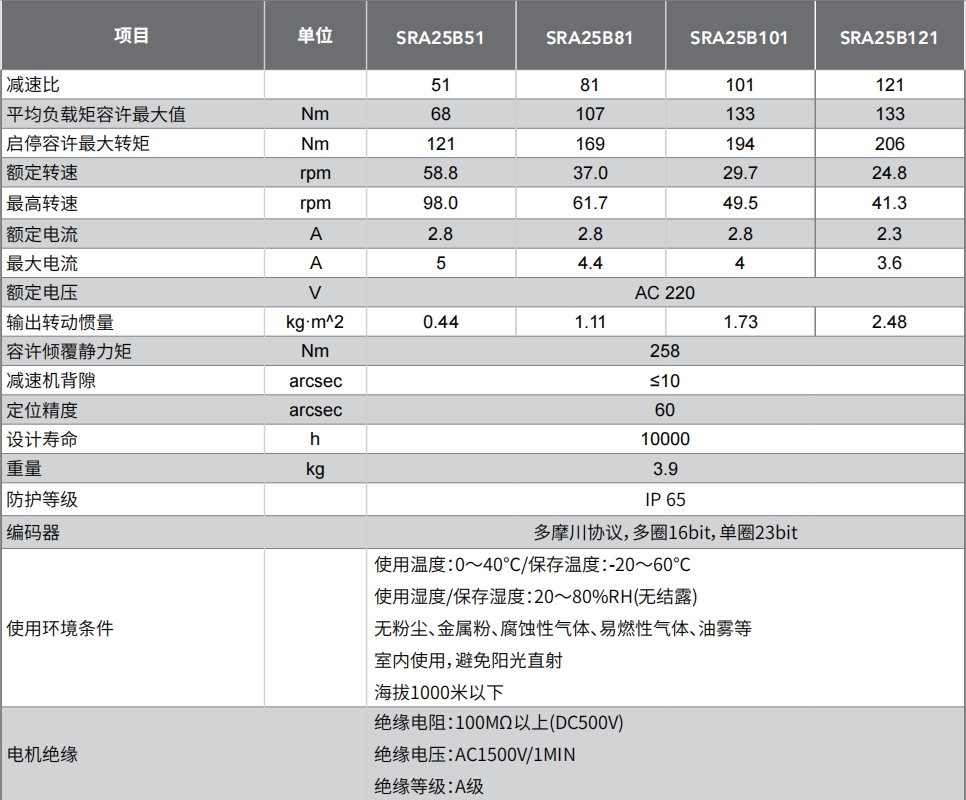

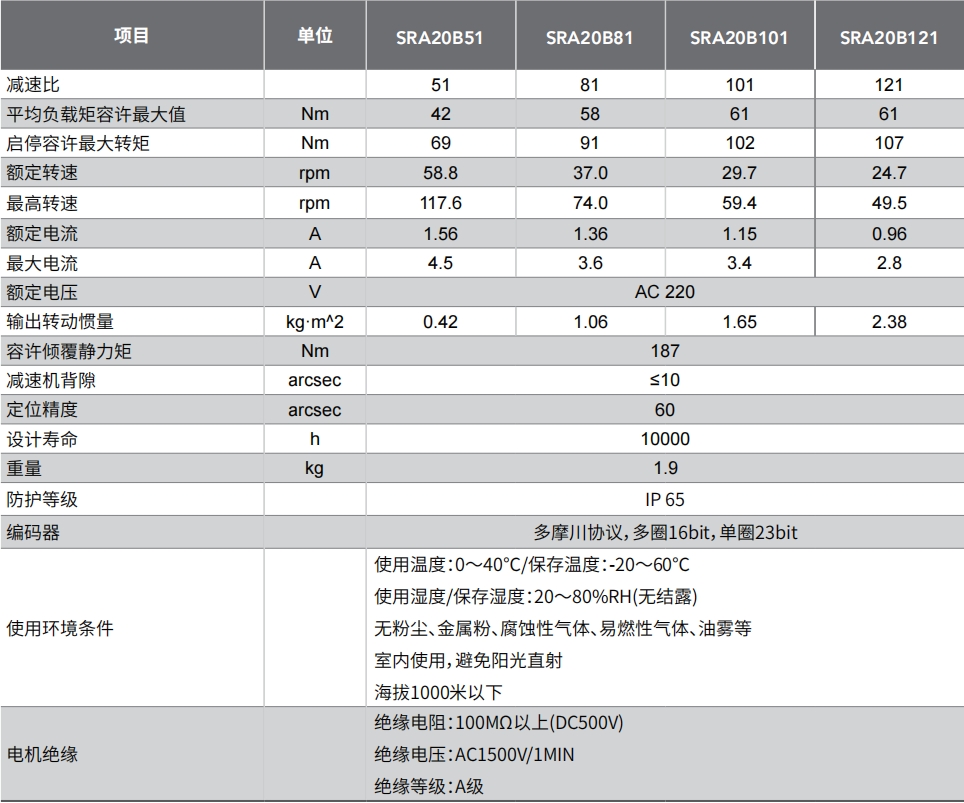

Parameter List

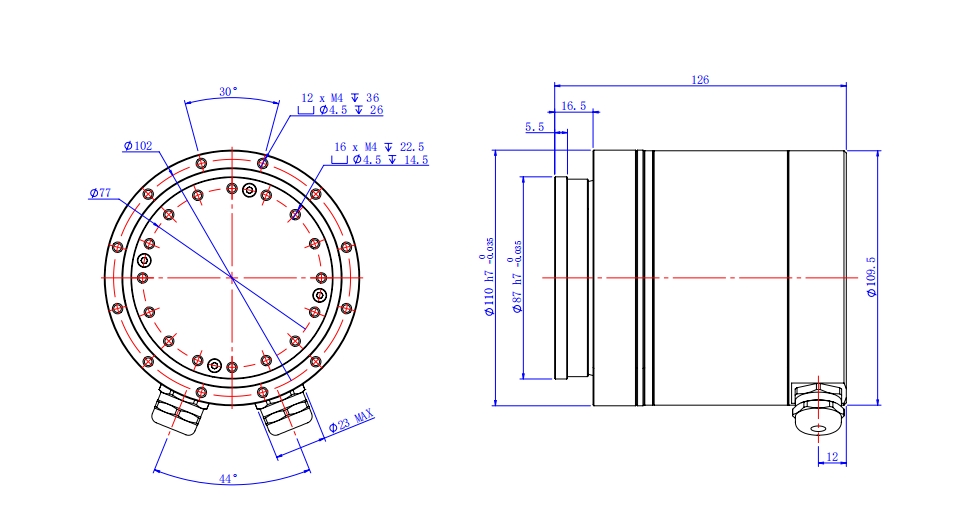

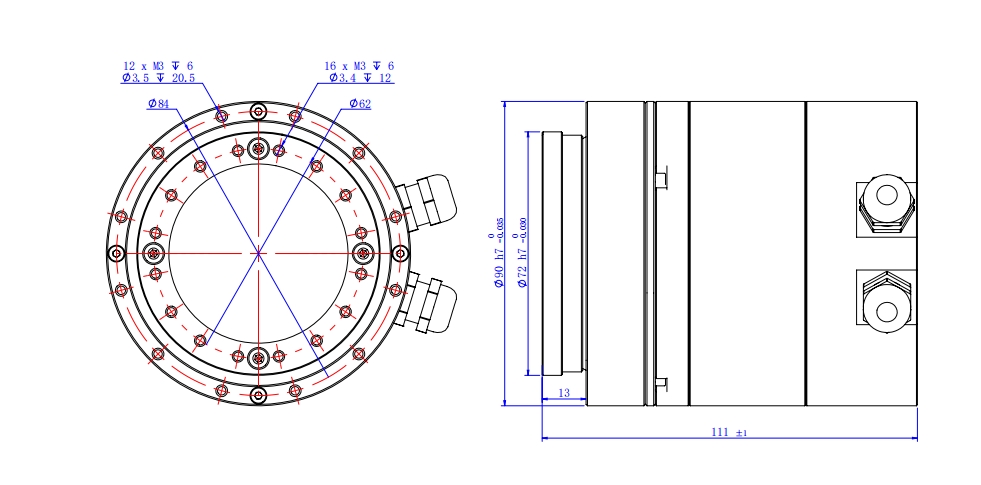

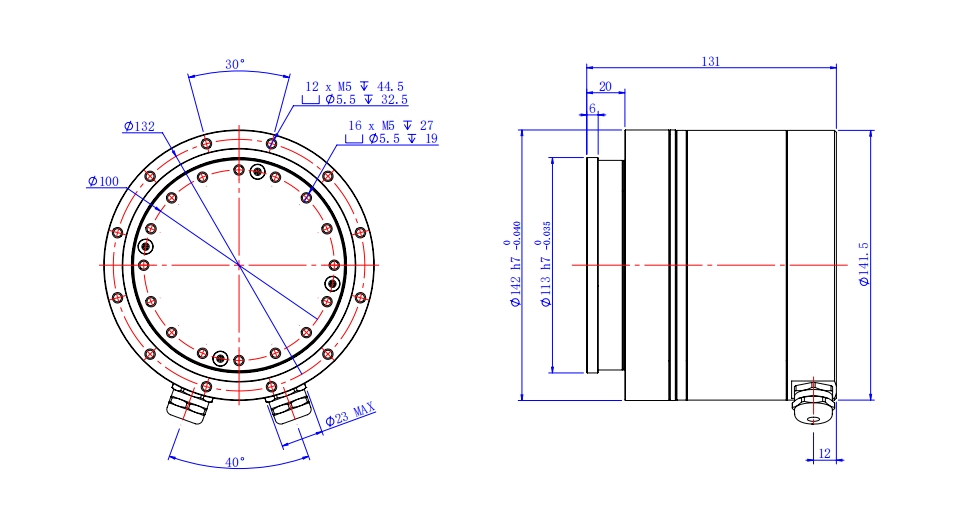

Dimension Drawing
SRA20B
SRA25B
SRA32B
Download
